Grillo AgriGarden Machines

GRILLO has been designing and producing machines for over 50 years machines for professional agriculture, green spaces maintenance as well as for domestic use in private house gardens.



With the aim of creating new technical solutions able to help operators with their daily work and make it every time more enjoyable, GRILLO company designs its machines by employing an efficient and professional technical staff. Each new machine passes very stringent tests to prove its durability and its reliability, and only after these tests are concluded, production is allowed, following the strict European standards adopted by the GRILLO Quality System.



GRILLO is represented with its products in 55 countries across 5 continents. It has a distribution and after sales network consisting of 1.000 dealers, more than 50 distributors and 3 sales branches.

Close
£560.00
plus VAT

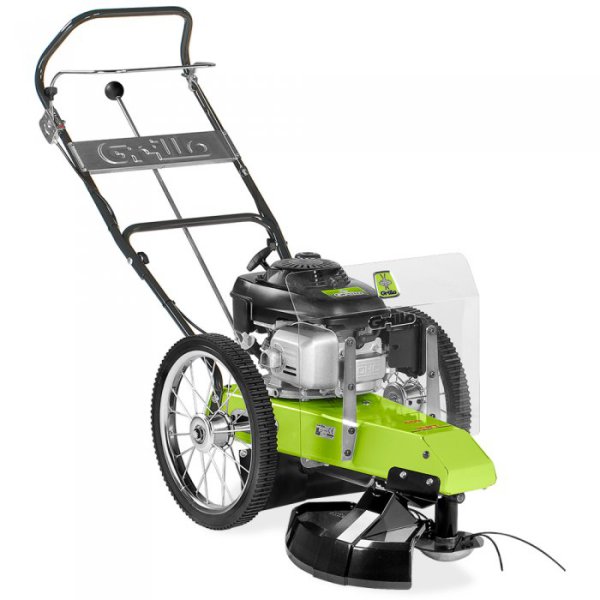

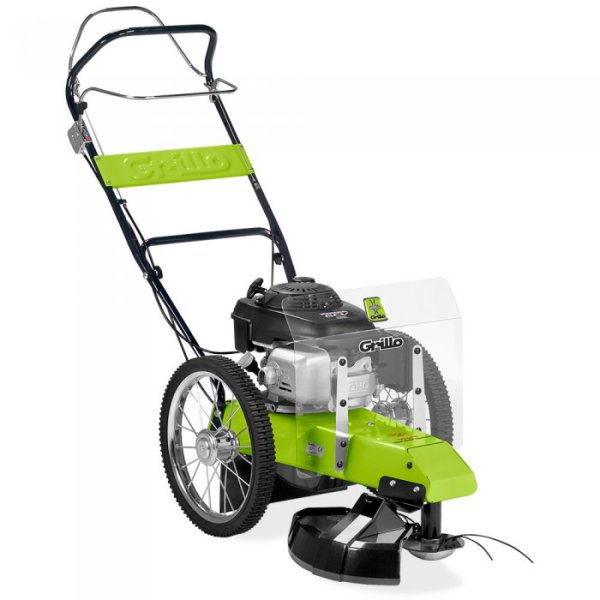

HWT 550 Tilt Wheeled Trimmer

HWT 550 Tilit Wheeled Trimmer has the option of reclining the tilting cutting head directly from your drive seat, thanks to a useful lever. 3 positions are available: right, left and central. The inclination is about 6° every parts.





Engine

Honda GCV160 OHC
Start recoil starter
Supply fuel
Displacement 160 cc, 1 Cylinder
Power 4.4 HP (3.3 kW)
Air cooled
Dry air filter with interchangeable filter cartridges

Fuel tank capacity

0,9 L

Cutting configuration

2 double cable-pairs

Cutting width

600 mm

Cutting height

Adjustable at 10, 25, 45 and 57 mm

Cutting head

laterally reclinable about 6° and adjustable with 3 positions: left, right and central

Wheels

16" mounted on bearings

Wheel axle

adjustable

Standard features

grass-guard protection

External sizes of the wheels

540 mm

Weight

40 kg


Display more >>


HWT 550 Tilt Wheeled Trimmer

£560.00 plus VAT

HWT 550 Tilit Wheeled Trimmer has the option of reclining the tilting cutting head directly from your drive seat, thanks to a useful lever. 3 positions are available: right, left and central. The inclination is about 6° every parts.





Engine

Honda GCV160 OHC
Start recoil starter
Supply fuel
Displacement 160 cc, 1 Cylinder
Power 4.4 HP (3.3 kW)
Air cooled
Dry air filter with interchangeable filter cartridges

Fuel tank capacity

0,9 L

Cutting configuration

2 double cable-pairs

Cutting width

600 mm

Cutting height

Adjustable at 10, 25, 45 and 57 mm

Cutting head

laterally reclinable about 6° and adjustable with 3 positions: left, right and central

Wheels

16" mounted on bearings

Wheel axle

adjustable

Standard features

grass-guard protection

External sizes of the wheels

540 mm

Weight

40 kg



Display more >>


Close
£750.00
plus VAT

HWT 600 WD Wheeled Trimmer

To work less, operate safely and have available abundant power to cut grass, small bushes, unkept areas in any ground conditions. With driving wheels!





Engine

Honda GCV160 OHC
Start recoil starter
Supply fuel
Displacement 160 cc, 1 Cylinder
Power 4.4 HP (3.3 kW)
Air cooled
Dry air filter with interchangeable filter cartridges

Fuel tank capacity

0,9 L

Gearbox

mechanical, single-speed

Clutch

multiple disc clutch in oil bath

Cutting configuration

2 double cablepairs

Cutting width

600 mm

Cutting height

Adjustable at 10, 25, 45 and 57 mm

Wheels

16" mounted on bearings

Wheel axle

Fix

Speed

3 km/h

Standard features

Grass-guard protection

External sizes of the wheels

540 mm

Weight

44 kg

Display more >>


HWT 600 WD Wheeled Trimmer

£750.00 plus VAT

To work less, operate safely and have available abundant power to cut grass, small bushes, unkept areas in any ground conditions. With driving wheels!





Engine

Honda GCV160 OHC
Start recoil starter
Supply fuel
Displacement 160 cc, 1 Cylinder
Power 4.4 HP (3.3 kW)
Air cooled
Dry air filter with interchangeable filter cartridges

Fuel tank capacity

0,9 L

Gearbox

mechanical, single-speed

Clutch

multiple disc clutch in oil bath

Cutting configuration

2 double cablepairs

Cutting width

600 mm

Cutting height

Adjustable at 10, 25, 45 and 57 mm

Wheels

16" mounted on bearings

Wheel axle

Fix

Speed

3 km/h

Standard features

Grass-guard protection

External sizes of the wheels

540 mm

Weight

44 kg

Display more >>


Close
£1,695.00
plus VAT

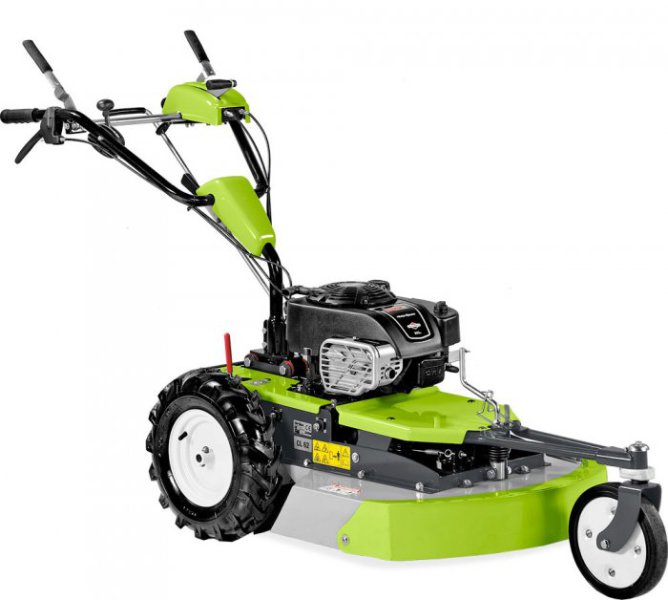

CL62 Grass Cutter

There are some difficult places, with slopes, uneven grounds and tight areas. Grillo knows how to work under those conditions and therefore designed and produced a complete series of perfect running machines for grass cut and for the cutting of coppice and wooden shrub in a safe and efficient way!
The output of the cutter deck ensures high speed operativity.
Thanks to the hydrostatic transmission it is always possible to find the right speed in every situation!
"Tractor" wheels, optimal weight distribution and diff-lock are standard features of Grillo's special garden machines!



Engine

Briggs & Stratton Intek 950E Series OHV
Start recoil starter
Supply fuel
Displacement 223 cc, 1 Cylinder
Power 5.6 HP (4.2 kW)
Air cooled
Dry air filter .

Fuel tank capacity

1,1 L

Drive

Hydrostatic

Traction

2WD

Cutting attachment

Rear discharge with front tipping opening

Cutting configuration

1 rotating blade

Cutting width

620 mm

Cutting height

From 50 to 110 continuously and rapidly adjustable by means of a crank lever

Peripheral blade speed

74 m/s

Drive wheels

4.00-8 tractor wheels

Front wheel

Puncture-proof

Speed

Continuously variable from 0 to 6 km/h, reverse gear from 0 to 3,5 km/h

Parking brake

By lever

Handlebar

By means of a rapid height and lateral adjustment of the handlebar

Mowing capacity per hour (indicative)

2000 m^2/h

Length

1969 mm

Width

707 mm

Height

1000 mm

Weight

90 kg

Display more >>


CL62 Grass Cutter

£1,695.00 plus VAT

There are some difficult places, with slopes, uneven grounds and tight areas. Grillo knows how to work under those conditions and therefore designed and produced a complete series of perfect running machines for grass cut and for the cutting of coppice and wooden shrub in a safe and efficient way!
The output of the cutter deck ensures high speed operativity.
Thanks to the hydrostatic transmission it is always possible to find the right speed in every situation!
"Tractor" wheels, optimal weight distribution and diff-lock are standard features of Grillo's special garden machines!



Engine

Briggs & Stratton Intek 950E Series OHV
Start recoil starter
Supply fuel
Displacement 223 cc, 1 Cylinder
Power 5.6 HP (4.2 kW)
Air cooled
Dry air filter .

Fuel tank capacity

1,1 L

Drive

Hydrostatic

Traction

2WD

Cutting attachment

Rear discharge with front tipping opening

Cutting configuration

1 rotating blade

Cutting width

620 mm

Cutting height

From 50 to 110 continuously and rapidly adjustable by means of a crank lever

Peripheral blade speed

74 m/s

Drive wheels

4.00-8 tractor wheels

Front wheel

Puncture-proof

Speed

Continuously variable from 0 to 6 km/h, reverse gear from 0 to 3,5 km/h

Parking brake

By lever

Handlebar

By means of a rapid height and lateral adjustment of the handlebar

Mowing capacity per hour (indicative)

2000 m^2/h

Length

1969 mm

Width

707 mm

Height

1000 mm

Weight

90 kg

Display more >>


Close
£2,295.00
plus VAT

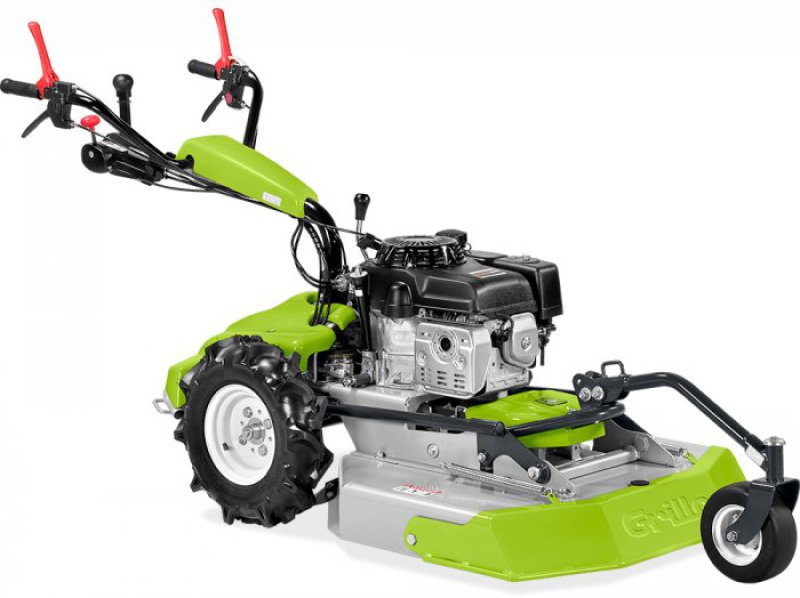

CL75 Grass Cutter

Thanks to the CL 75’s manoeuvrability cutting high grass and other vegetation becomes quick and efficient. Uneven ground, steep slopes and different type of obstacles never represent a problem for CL 75! The perfect weight distribution and the special tractor tyre profile grant adherence to the ground under all conditions. The cutter deck with a single blade and floating tips, produces a very good finish also when mowing turfs, making it an ideal machine for lawn care for both professional and domestic use and in agriculture for mowing in fruit orchards and olive groves.



Engine

Honda GXV340 OHV
Start recoil starter
Supply fuel
Displacement 337 cc, 1 Cylinder
Power 8.9 HP (6.6 kW)
Air cooled
Dry air filter with interchangeable filter cartridges .

Engine

Briggs & Stratton Intek 3.130 Power Built Series
Start electric, with 12 V battery
Supply fuel
Displacement 344 cc, 1 Cylinder
Power 10 HP (7.4 kW)
Air cooled
Dry air filter with interchangeable filter cartridges .

Fuel tank capacity

2.6 L GXV340 OHV engine - 2.5 L Intek 3.130 engine

Drive

Hydrostatic

Traction

2WD

Cutting attachment

Rear discharge with front tipping opening

Cutting configuration

1 rotating blade with 2 shockproof floating blades

Cutting width

750 mm

Cutting height

From 50 to 150 continuously and rapidly adjustable by means of a crank lever

Peripheral blade speed

74 m/s

Differential locking

Manual engaged differential lock

Drive wheels

Tractor wheels with 4 plies 4.00-8

Front wheel

8x3.00-4 puncture-proof wheels

Speed

Continuously variable from 0 to 6 km/h, reverse gear from 0 to 3,5 km/h

Parking brake

By lever

Handlebar

By means of a rapid height and lateral adjustment of the handlebar

Mowing capacity per hour (indicative)

2500 m^2/h

Length

2150 mm

Width

845 mm

Height

1050 mm

Weight

140 kg with GXV340 OHV engine - 150 kg with Intek 3.130 engine


Display more >>


CL75 Grass Cutter

£2,295.00 plus VAT

Thanks to the CL 75’s manoeuvrability cutting high grass and other vegetation becomes quick and efficient. Uneven ground, steep slopes and different type of obstacles never represent a problem for CL 75! The perfect weight distribution and the special tractor tyre profile grant adherence to the ground under all conditions. The cutter deck with a single blade and floating tips, produces a very good finish also when mowing turfs, making it an ideal machine for lawn care for both professional and domestic use and in agriculture for mowing in fruit orchards and olive groves.



Engine

Honda GXV340 OHV
Start recoil starter
Supply fuel
Displacement 337 cc, 1 Cylinder
Power 8.9 HP (6.6 kW)
Air cooled
Dry air filter with interchangeable filter cartridges .

Engine

Briggs & Stratton Intek 3.130 Power Built Series
Start electric, with 12 V battery
Supply fuel
Displacement 344 cc, 1 Cylinder
Power 10 HP (7.4 kW)
Air cooled
Dry air filter with interchangeable filter cartridges .

Fuel tank capacity

2.6 L GXV340 OHV engine - 2.5 L Intek 3.130 engine

Drive

Hydrostatic

Traction

2WD

Cutting attachment

Rear discharge with front tipping opening

Cutting configuration

1 rotating blade with 2 shockproof floating blades

Cutting width

750 mm

Cutting height

From 50 to 150 continuously and rapidly adjustable by means of a crank lever

Peripheral blade speed

74 m/s

Differential locking

Manual engaged differential lock

Drive wheels

Tractor wheels with 4 plies 4.00-8

Front wheel

8x3.00-4 puncture-proof wheels

Speed

Continuously variable from 0 to 6 km/h, reverse gear from 0 to 3,5 km/h

Parking brake

By lever

Handlebar

By means of a rapid height and lateral adjustment of the handlebar

Mowing capacity per hour (indicative)

2500 m^2/h

Length

2150 mm

Width

845 mm

Height

1050 mm

Weight

140 kg with GXV340 OHV engine - 150 kg with Intek 3.130 engine



Display more >>


Close
£3,195.00
plus VAT

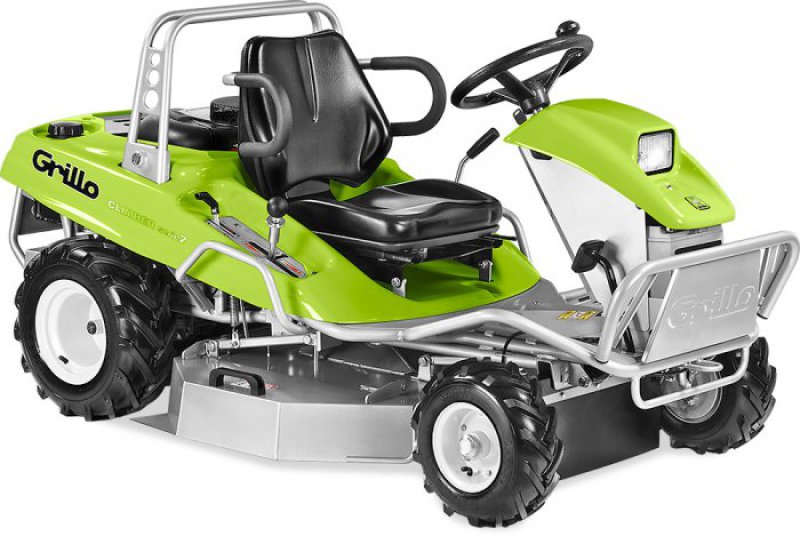

CL713 Grass Cutter

The hydrostatic grass-cutter with blade is equipped with diff-lock, front safety brakes and electro-magnetic clutch. It is ideal when cutting high grass, coppice and blackberry bushes on slopes or undulating ground.
Thanks to its performing 10HP engine, Grillo Climber 7.13 is able to work safely and efficiently in the maintenance of rustic areas, in agriculture and in the greenery maintenance.
The extreme manoeuvrability, smooth steering and the speed makes the Grillo Climber 7.13 quick and efficient, but at the same time a simple and easy to use machine. A grass-cutter which can be operated by most people!



Engine

Briggs & Stratton Intek 3.130 AVS
Start electric, with 12 V battery
Supply fuel
Displacement 344 cc, 1 Cylinder
Power 10 HP (7.4 kW)
Air cooled
Dry air filter with interchangeable filter cartridges .

Fuel tank capacity

Fuel tank 7 litres (reserve tank 1 litre)

Gearbox

hydrostatic transmission

Clutch

Clutch: electromagnetic for PTO with blade brake

Cutting attachment

side/rear discharge

Cutting configuration

1 rotating blade

Cutting width

850 mm

Cutting height

6 different cutting positions from 35 to 85 mm and 1 position for transport

Peripheral blade speed

76 m/s

Differential locking

Differencial locki by pedal action

Front tyres

Tractor 13x5.00-6 wheels

Rear tyres

16x6.50-8 Tractor

Speed

Continuously variable from 0 to 9 km/h, reverse gear from 0 to 6 km/h

inner turning radius

45 cm

Seat

Dampened and adjustable seat, with roll bar

Service brake

On the front wheels brakes are pedal-operated

Parking brake

On the rear wheels brakes are lever-operated

Mowing capacity per hour (indicative)

4800 m^2/h

Accessories in series

tow bar and front headlight

Length

1895 mm

Width

950 mm

Height

975 mm

Weight

225 kg

Display more >>


CL713 Grass Cutter

£3,195.00 plus VAT

The hydrostatic grass-cutter with blade is equipped with diff-lock, front safety brakes and electro-magnetic clutch. It is ideal when cutting high grass, coppice and blackberry bushes on slopes or undulating ground.
Thanks to its performing 10HP engine, Grillo Climber 7.13 is able to work safely and efficiently in the maintenance of rustic areas, in agriculture and in the greenery maintenance.
The extreme manoeuvrability, smooth steering and the speed makes the Grillo Climber 7.13 quick and efficient, but at the same time a simple and easy to use machine. A grass-cutter which can be operated by most people!



Engine

Briggs & Stratton Intek 3.130 AVS
Start electric, with 12 V battery
Supply fuel
Displacement 344 cc, 1 Cylinder
Power 10 HP (7.4 kW)
Air cooled
Dry air filter with interchangeable filter cartridges .

Fuel tank capacity

Fuel tank 7 litres (reserve tank 1 litre)

Gearbox

hydrostatic transmission

Clutch

Clutch: electromagnetic for PTO with blade brake

Cutting attachment

side/rear discharge

Cutting configuration

1 rotating blade

Cutting width

850 mm

Cutting height

6 different cutting positions from 35 to 85 mm and 1 position for transport

Peripheral blade speed

76 m/s

Differential locking

Differencial locki by pedal action

Front tyres

Tractor 13x5.00-6 wheels

Rear tyres

16x6.50-8 Tractor

Speed

Continuously variable from 0 to 9 km/h, reverse gear from 0 to 6 km/h

inner turning radius

45 cm

Seat

Dampened and adjustable seat, with roll bar

Service brake

On the front wheels brakes are pedal-operated

Parking brake

On the rear wheels brakes are lever-operated

Mowing capacity per hour (indicative)

4800 m^2/h

Accessories in series

tow bar and front headlight

Length

1895 mm

Width

950 mm

Height

975 mm

Weight

225 kg

Display more >>


Close
£3,995.00
incl. VAT

CL718 Grass Cutter

The hydrostatic grass-cutter with blade is equipped with diff-lock, front safety brakes and electro-magnetic clutch. It is ideal when cutting high grass, coppice and blackberry bushes on slopes or undulating ground.

Display more >>


CL718 Grass Cutter

£3,995.00 incl. VAT

The hydrostatic grass-cutter with blade is equipped with diff-lock, front safety brakes and electro-magnetic clutch. It is ideal when cutting high grass, coppice and blackberry bushes on slopes or undulating ground.


Display more >>


Close
£2,400.00
plus VAT

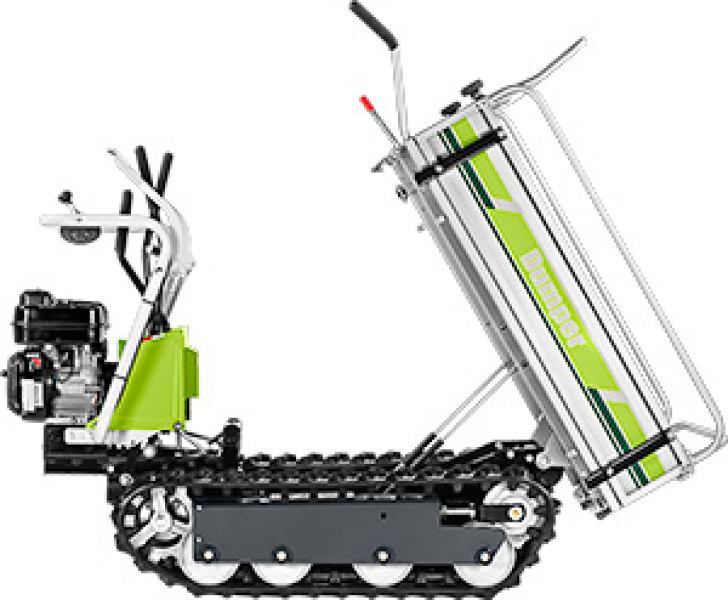

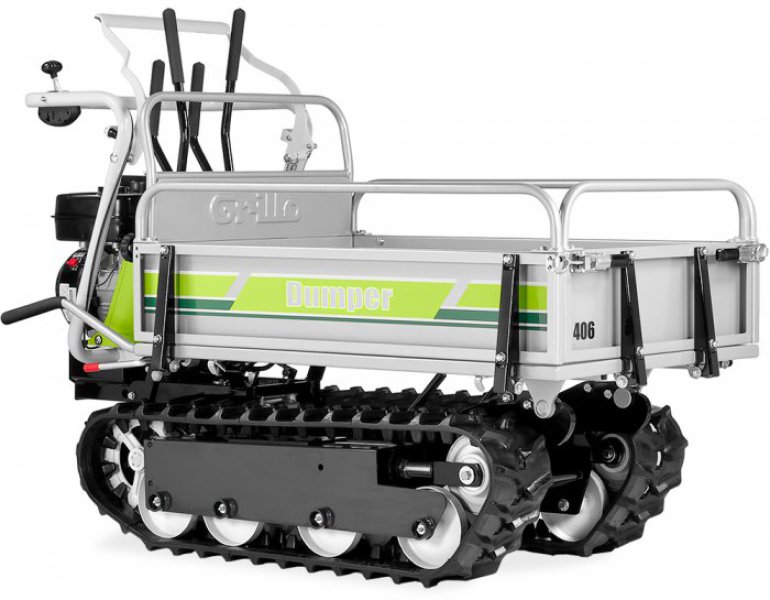

D406 Tracked Barrow

The compact and rapid rubber track carrier Dumper 406 is ideal for the transport of any kind of material in different sectors such as agriculture, zootechny, industry and gardening.
The completely mechanized traction allows the full exploitation of the engines power. The rubber tracks with chain links made of steel and the optional engine types are the basis for a useful carrying capacity of the body 400 kg



The body with its floor and side boards made of steel, has a wide load platform and is equipped with hooks to secure the load. The load bed can be enlarged and the side boards can be blocked horizontally enabling large bulky loads to be loaded
The body was manufactured in series with manual front tipping and is assisted by gas struts in order to reduce the necessary effort when tipping a load.





Engine

Kohler Lombardini SH265 OHV
Start recoil starter
Supply fuel
Displacement 196 cc, 1 Cylinder
Power 5.5 HP (4.1 kW)
Air cooled
Dry air filter with interchangeable filter cartridges .

Engine

Robin Subaru EX17 OHC
Start recoil starter
Supply fuel
Displacement 169 cc, 1 Cylinder
Power 5 HP (3.7 kW)
Air cooled
Dry air filter with interchangeable filter cartridges .

Fuel tank capacity

3,6 L eng. EX 17 OHC - 3,6 L eng. SH265

Drive

with oil bath gears

Traction

with rubber tracks with inner steel links

Gearbox

3 forward gears + 3 reverse gears

Clutch

clutch per belt tension

Supporting surface of the track

700 mm

Load bed

Equipped with side dump boards through gas springs

Internal size of the load bed

100 x 65 x 20 (H 33 cm with top extension side)

Total load bed height

435 mm

Capacity

400 kg

Speed

1st gear 1,0 km/h, 2nd gear 2,0 km/h, 3rd gear 3,5 km/h, 1st reverse gear 1,0 km/h, 2nd reverse gear 2,0 km/h, 3rd reverse gear 3,5 km/h

Steering wheel

with clutches in oil bath combined with brakes

Safety devices

automatic handbrake

Length

1610 mm

Width

780 mm

Height

1100 mm

External sizes of the track

650 mm

Weight

Weight: with SH265 engine 241 kg – with EX17 engine 240 kg





Display more >>


D406 Tracked Barrow

£2,400.00 plus VAT

The compact and rapid rubber track carrier Dumper 406 is ideal for the transport of any kind of material in different sectors such as agriculture, zootechny, industry and gardening.
The completely mechanized traction allows the full exploitation of the engines power. The rubber tracks with chain links made of steel and the optional engine types are the basis for a useful carrying capacity of the body 400 kg



The body with its floor and side boards made of steel, has a wide load platform and is equipped with hooks to secure the load. The load bed can be enlarged and the side boards can be blocked horizontally enabling large bulky loads to be loaded
The body was manufactured in series with manual front tipping and is assisted by gas struts in order to reduce the necessary effort when tipping a load.





Engine

Kohler Lombardini SH265 OHV
Start recoil starter
Supply fuel
Displacement 196 cc, 1 Cylinder
Power 5.5 HP (4.1 kW)
Air cooled
Dry air filter with interchangeable filter cartridges .

Engine

Robin Subaru EX17 OHC
Start recoil starter
Supply fuel
Displacement 169 cc, 1 Cylinder
Power 5 HP (3.7 kW)
Air cooled
Dry air filter with interchangeable filter cartridges .

Fuel tank capacity

3,6 L eng. EX 17 OHC - 3,6 L eng. SH265

Drive

with oil bath gears

Traction

with rubber tracks with inner steel links

Gearbox

3 forward gears + 3 reverse gears

Clutch

clutch per belt tension

Supporting surface of the track

700 mm

Load bed

Equipped with side dump boards through gas springs

Internal size of the load bed

100 x 65 x 20 (H 33 cm with top extension side)

Total load bed height

435 mm

Capacity

400 kg

Speed

1st gear 1,0 km/h, 2nd gear 2,0 km/h, 3rd gear 3,5 km/h, 1st reverse gear 1,0 km/h, 2nd reverse gear 2,0 km/h, 3rd reverse gear 3,5 km/h

Steering wheel

with clutches in oil bath combined with brakes

Safety devices

automatic handbrake

Length

1610 mm

Width

780 mm

Height

1100 mm

External sizes of the track

650 mm

Weight

Weight: with SH265 engine 241 kg – with EX17 engine 240 kg






Display more >>


Close
£4,095.00
plus VAT

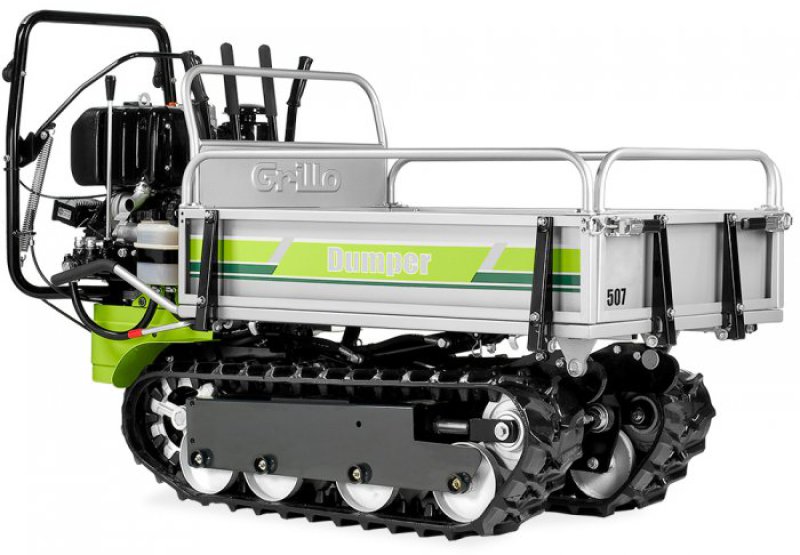

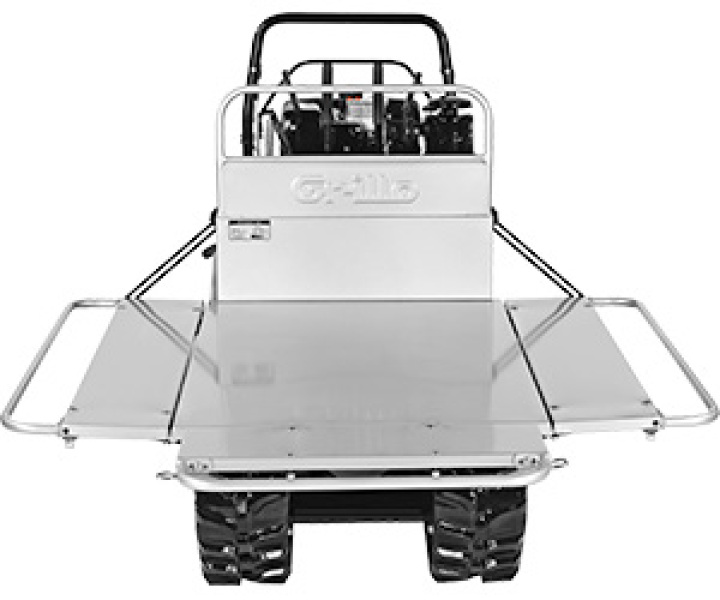

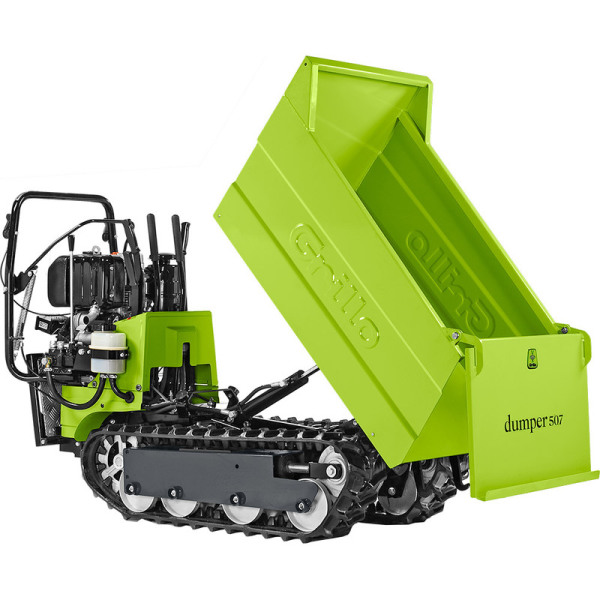

D507 Tracked Dumper

The Dumper 507 is a powerful and versatile track carrier for transporting of various types of material in various applications.
The completely mechanized traction allows the full exploitation of the engines power; rubber tracks with chain links made of steel as well as optional high performing engine models are the basis for a useful carrying capacity of 500 kg.
Thanks to the large number of connectable accessories the Dumper 507 is not only a simple carrier, but an all round multi-purpose equipment vehicle!



Engine

Robin Subaru EX27 OHC
Start recoil starter
Supply fuel
Displacement 265 cc, 1 Cylinder
Power 8.3 HP (6.1 kW)
Air cooled
Dry air filter .

Fuel tank capacity

6,1 L eng. EX 27 OHC - 4,3 L eng. 15 LD 350

Drive

with oil bath gears

Traction

rubber tracks with inner steel links

Gearbox

4 forward gears + 3 reverse gears

Clutch

clutch per belt tension

Supporting surface of the track

700 mm

Load bed

Standardversion equipped with side dump boards and forward tipping system. Optional: Dumper version 230 L body forward tipping system

Internal size of the load bed

100 x 65 x 20 (H 33 cm with top extension side)

Total load bed height

435 mm

Capacity

500 kg

P.T.O.

965 rpm independent on the gearbox . Right hand rotation sense

Speed

1st gear 1,0 km/h, 2nd gear 2,0 km/h, 3rd gear 3,5 km/h, 4th gear 8,7 km/h, 1st reverse gear 1,0 km/h, 2nd reverse gear 2,0 km/h, 3rd reverse gear 3,5 km/h

Steering wheel

with clutches in oil bath combined with brakes

Safety devices

automatic handbrake

Length

171 cm

Width

78 cm

Height

108 cm

External sizes of the track

650 mm

Weight

Weight of standard machine with eng. EX27 kg 276 - Weight of standard machine with eng.. EX27 with electric starter kg 288 - Weight of standard machine with eng. 15LD350 kg 286 - Weight of standard machine with eng. 15LD350 with electric starter kg 311

Display more >>


D507 Tracked Dumper

£4,095.00 plus VAT

The Dumper 507 is a powerful and versatile track carrier for transporting of various types of material in various applications.
The completely mechanized traction allows the full exploitation of the engines power; rubber tracks with chain links made of steel as well as optional high performing engine models are the basis for a useful carrying capacity of 500 kg.
Thanks to the large number of connectable accessories the Dumper 507 is not only a simple carrier, but an all round multi-purpose equipment vehicle!



Engine

Robin Subaru EX27 OHC
Start recoil starter
Supply fuel
Displacement 265 cc, 1 Cylinder
Power 8.3 HP (6.1 kW)
Air cooled
Dry air filter .

Fuel tank capacity

6,1 L eng. EX 27 OHC - 4,3 L eng. 15 LD 350

Drive

with oil bath gears

Traction

rubber tracks with inner steel links

Gearbox

4 forward gears + 3 reverse gears

Clutch

clutch per belt tension

Supporting surface of the track

700 mm

Load bed

Standardversion equipped with side dump boards and forward tipping system. Optional: Dumper version 230 L body forward tipping system

Internal size of the load bed

100 x 65 x 20 (H 33 cm with top extension side)

Total load bed height

435 mm

Capacity

500 kg

P.T.O.

965 rpm independent on the gearbox . Right hand rotation sense

Speed

1st gear 1,0 km/h, 2nd gear 2,0 km/h, 3rd gear 3,5 km/h, 4th gear 8,7 km/h, 1st reverse gear 1,0 km/h, 2nd reverse gear 2,0 km/h, 3rd reverse gear 3,5 km/h

Steering wheel

with clutches in oil bath combined with brakes

Safety devices

automatic handbrake

Length

171 cm

Width

78 cm

Height

108 cm

External sizes of the track

650 mm

Weight

Weight of standard machine with eng. EX27 kg 276 - Weight of standard machine with eng.. EX27 with electric starter kg 288 - Weight of standard machine with eng. 15LD350 kg 286 - Weight of standard machine with eng. 15LD350 with electric starter kg 311

Display more >>


Close
£4,139.00
plus VAT

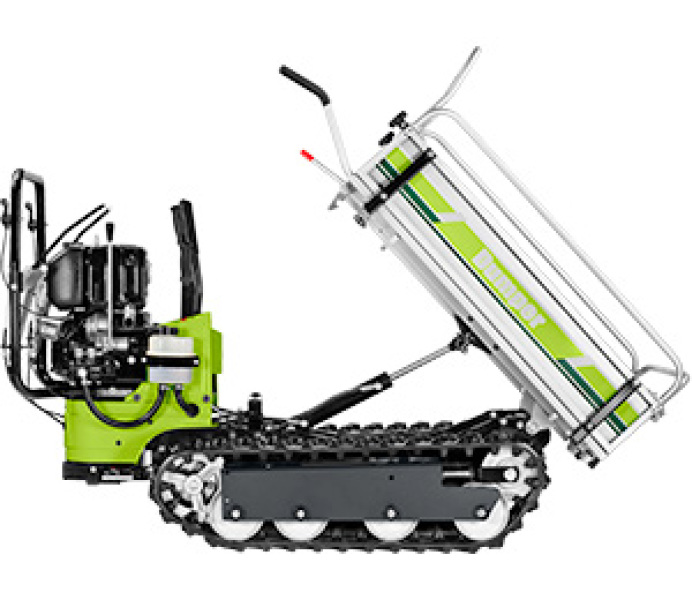

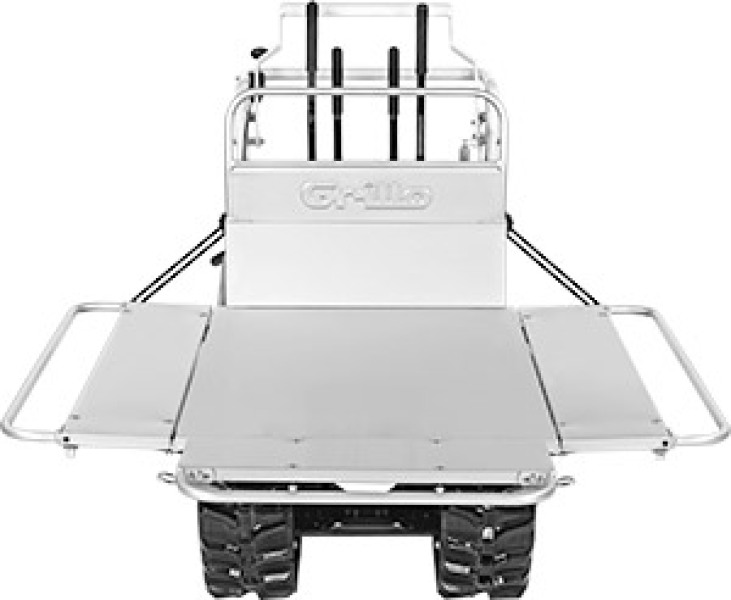

D507 Tracked Barrow

The Dumper 507 is a powerful and versatile track carrier for transporting of various types of material in various applications.

 The body with its floor and side boards made of steel, has a wide load platform and is equipped with hooks to secure the load. The body can be enlarged, side boards can be blocked horizontally enabling large bulky loads to be carried



The completely mechanized traction allows the full exploitation of the engines power; rubber tracks with chain links made of steel as well as optional high performing engine models are the basis for a useful carrying capacity of 500 kg.
Thanks to the large number of connectable accessories the Dumper 507 is not only a simple carrier, but an all round multi-purpose equipment vehicle!



Engine

Robin Subaru EX27 OHC
Start recoil starter
Supply fuel
Displacement 265 cc, 1 Cylinder
Power 8.3 HP (6.1 kW)
Air cooled
Dry air filter .

Fuel tank capacity

6,1 L eng. EX 27 OHC - 4,3 L eng. 15 LD 350

Drive

with oil bath gears

Traction

rubber tracks with inner steel links

Gearbox

4 forward gears + 3 reverse gears

Clutch

clutch per belt tension

Supporting surface of the track

700 mm

Load bed

Standardversion equipped with side dump boards and forward tipping system. Optional: Dumper version 230 L body forward tipping system

Internal size of the load bed

100 x 65 x 20 (H 33 cm with top extension side)

Total load bed height

435 mm

Capacity

500 kg

P.T.O.

965 rpm independent on the gearbox . Right hand rotation sense

Speed

1st gear 1,0 km/h, 2nd gear 2,0 km/h, 3rd gear 3,5 km/h, 4th gear 8,7 km/h, 1st reverse gear 1,0 km/h, 2nd reverse gear 2,0 km/h, 3rd reverse gear 3,5 km/h

Steering wheel

with clutches in oil bath combined with brakes

Safety devices

automatic handbrake

Length

171 cm

Width

78 cm

Height

108 cm

External sizes of the track

650 mm

Weight

Weight of standard machine with eng. EX27 kg 276 - Weight of standard machine with eng.. EX27 with electric starter kg 288 - Weight of standard machine with eng. 15LD350 kg 286 - Weight of standard machine with eng. 15LD350 with electric starter kg 311

Display more >>


D507 Tracked Barrow

£4,139.00 plus VAT

The Dumper 507 is a powerful and versatile track carrier for transporting of various types of material in various applications.

 The body with its floor and side boards made of steel, has a wide load platform and is equipped with hooks to secure the load. The body can be enlarged, side boards can be blocked horizontally enabling large bulky loads to be carried



The completely mechanized traction allows the full exploitation of the engines power; rubber tracks with chain links made of steel as well as optional high performing engine models are the basis for a useful carrying capacity of 500 kg.
Thanks to the large number of connectable accessories the Dumper 507 is not only a simple carrier, but an all round multi-purpose equipment vehicle!



Engine

Robin Subaru EX27 OHC
Start recoil starter
Supply fuel
Displacement 265 cc, 1 Cylinder
Power 8.3 HP (6.1 kW)
Air cooled
Dry air filter .

Fuel tank capacity

6,1 L eng. EX 27 OHC - 4,3 L eng. 15 LD 350

Drive

with oil bath gears

Traction

rubber tracks with inner steel links

Gearbox

4 forward gears + 3 reverse gears

Clutch

clutch per belt tension

Supporting surface of the track

700 mm

Load bed

Standardversion equipped with side dump boards and forward tipping system. Optional: Dumper version 230 L body forward tipping system

Internal size of the load bed

100 x 65 x 20 (H 33 cm with top extension side)

Total load bed height

435 mm

Capacity

500 kg

P.T.O.

965 rpm independent on the gearbox . Right hand rotation sense

Speed

1st gear 1,0 km/h, 2nd gear 2,0 km/h, 3rd gear 3,5 km/h, 4th gear 8,7 km/h, 1st reverse gear 1,0 km/h, 2nd reverse gear 2,0 km/h, 3rd reverse gear 3,5 km/h

Steering wheel

with clutches in oil bath combined with brakes

Safety devices

automatic handbrake

Length

171 cm

Width

78 cm

Height

108 cm

External sizes of the track

650 mm

Weight

Weight of standard machine with eng. EX27 kg 276 - Weight of standard machine with eng.. EX27 with electric starter kg 288 - Weight of standard machine with eng. 15LD350 kg 286 - Weight of standard machine with eng. 15LD350 with electric starter kg 311

Display more >>


back

Caerfagu opening times:

Mon - Fri
8.00am - 1.00pm
1.30pm - 5.00pm

ENDURAMAXX Sprayers

Print | Sitemap
© CAERFAGU PRODUCTS LTD
Login

Web ViewMobile View

Logout | Edit page
